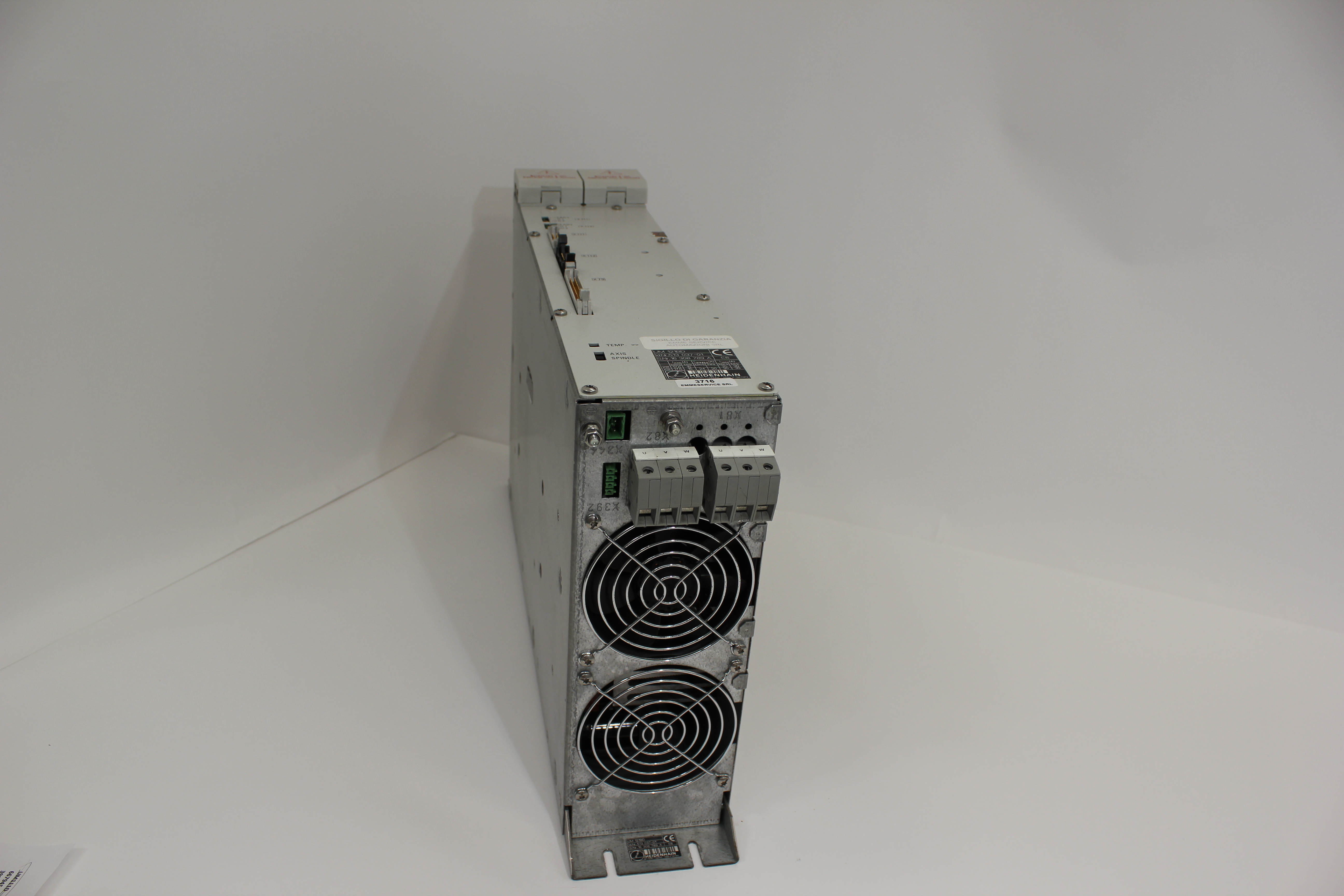

Heidenhain UR240D (741357-01)
Heidenhain UR240D (741357-01)
Heidenhain UR240D (741357-01)
| UR 240D Compact Inverter regenerative With diagnostic functions and electronic ID lable Rated current 5 kHz: 2 x 7.5A-axes and 7.5A-axis or 10A-spindle, 35A-spindle or 25A-axis Max. current at 5 kHz: 3x 15A and 50A Rated power: 22 kW Power S6-40%: 30 kW Peak power: 40kW<4.0s DC-link voltage: 650 V Low-voltage power supply unit: 200 W Type of heat removal: internal Connection for holding brakes: with connection Module width: 250.00 mm Ribbon cables and cover for ribbon cables are included in delivery |
